TIGERLINE

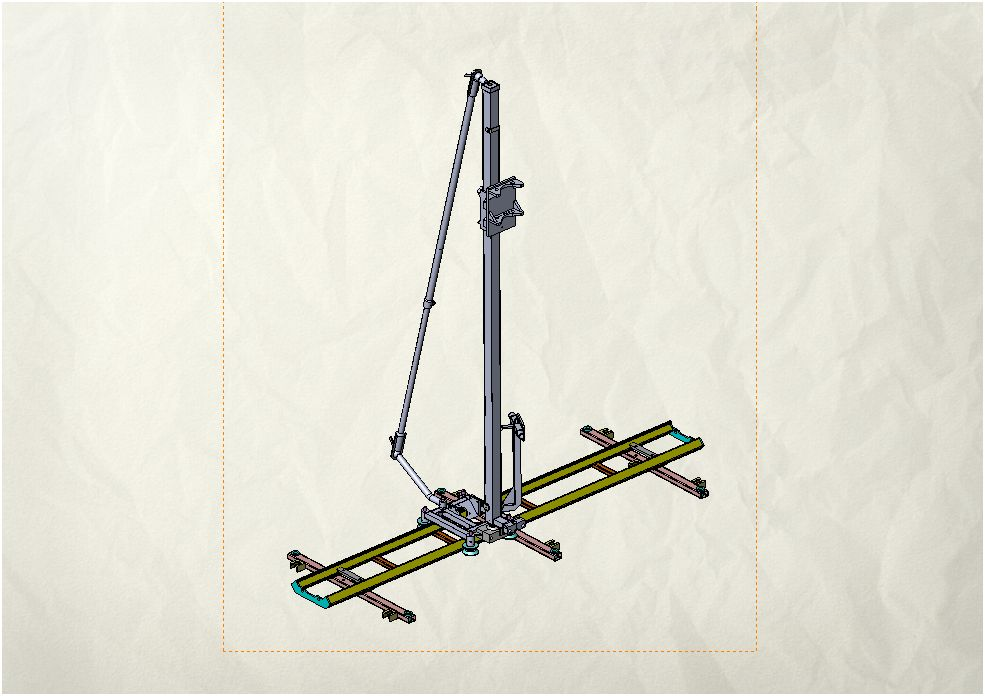

TIGERLINE (TIGERLINE I) is a compact single-column chain feed line drilling machine from the TIGER® range, designed for cutting and sizing operations in granite, marble, and natural stone quarries. Its portable design allows quick on-site installation and immediate start of drilling. The machine features a single drilling column with a chain-driven slide (2,100–2,900 mm feed stroke), compatible with YT24 or YT28 pneumatic drilling hammers for 32–45 mm holes. These hammers move vertically along the column, with feed speed adjustable from the control panel to match rock characteristics. TIGERLINE is equipped with a steerable control panel and a central lubrication unit, providing a reliable and efficient drilling solution for light and medium-scale quarry applications.
Product Essential
Working Pressure | 7 bar |
Minimum Air Flow Rate | 5 m³/min |
Air Consumption | 5–10 m³/min |
Feed System | Chain feed |
Feed Stroke | 2,100–2,900 mm |
Drilling Direction | Vertical, horizontal, angled |
CE Marking | CE |
Machinery Safety | 2006/42/EC |
Air Inlet Connection | Camlock 1½" |
Lubrication System | Central lubrication |
Drilling Hammer Type | Top hammer |
Top Hammer – Type | Pneumatic |
Top Hammer – Impact Frequency | 1,620–2,000 BPM (27–33.3 Hz) |
Top Hammer – Drilling Diameter | 32–45 mm |
Top Hammer – Max. Drilling Depth | 10 m |
Top Hammer – Max. Drilling Speed | Marble 50–70 cm/min · Granite 35–50 cm/min |
Top Hammer – Air Consumption | 3–3.6 m³/min |
Top Hammer – Shank Size | 22 × 108 mm |
Height | 3.3 m |
Rail Length | 3 m |
Rail Weight | 65 kg |
Control Stand Weight | 5 kg |
Column Weight (including skid) | 45 kg |
Total Weight (excluding rock drill) | 150 kg |
