SMART DRILL ELECTRIC

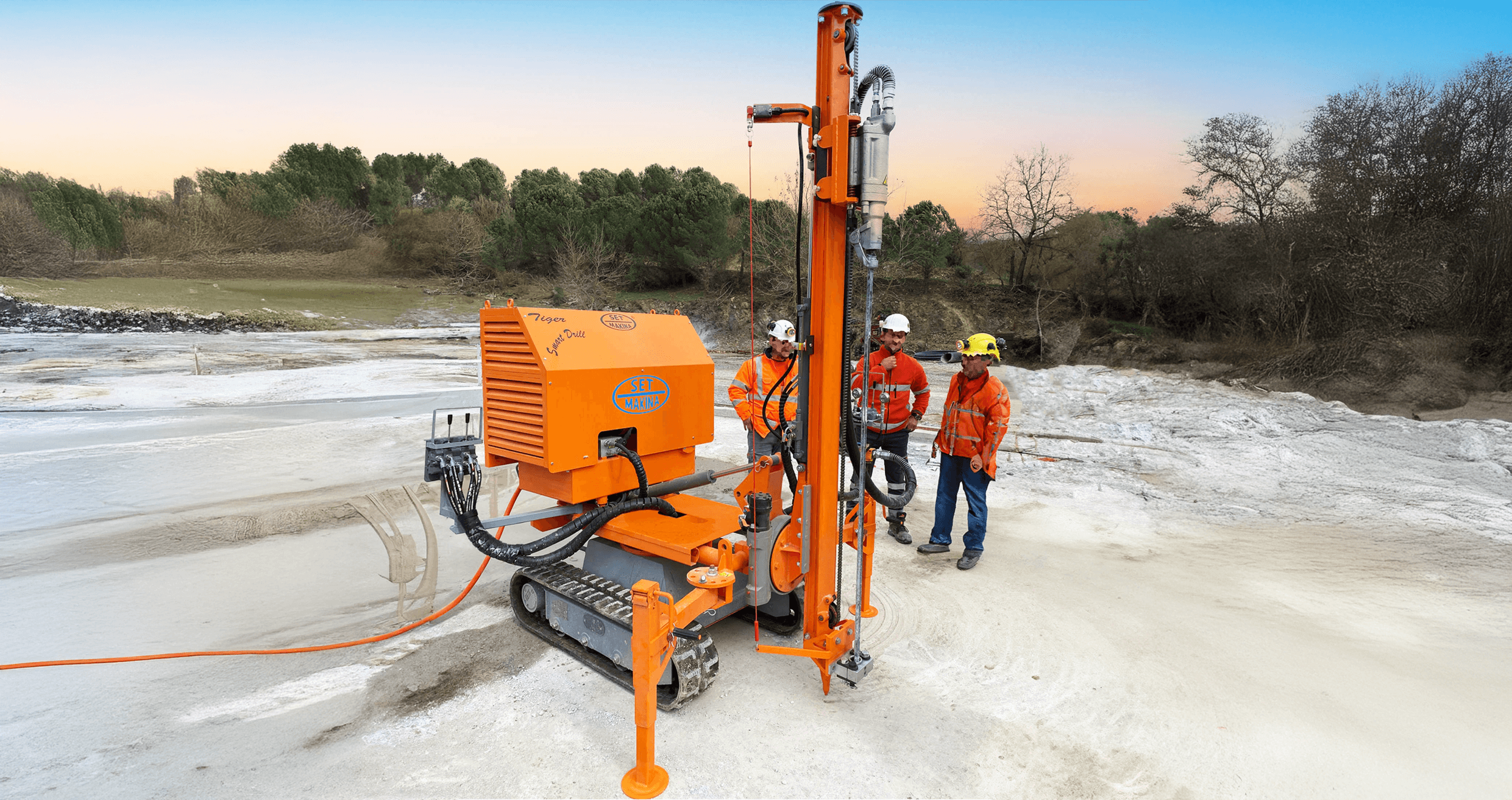

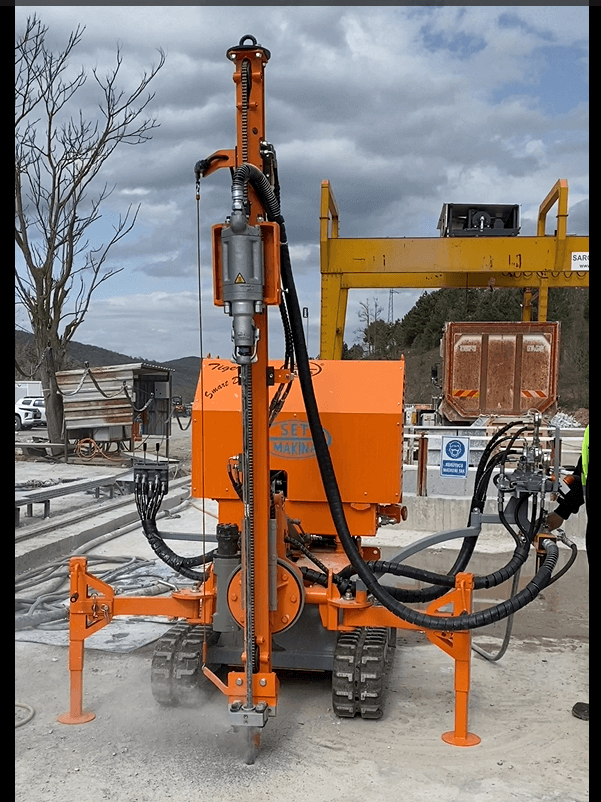

The TIGER® SMART DRILL ELECTRIC is a compact hydraulic crawler drill rig powered by a 20 HP (15 kW) electric motor, designed for precision drilling in horizontal, vertical, or angled positions. The machine is equipped with a hydraulic system (200–250 bar) and mounted on a self-propelled rubber crawler base, ensuring high mobility and stability across rough terrain. The standard configuration includes a column-type frame, and upon request, a steel pallet base can be supplied. The drill head is interchangeable and can be easily adapted to different drilling methods without any modification, allowing the use of core heads (up to 40 m, Ø38 mm), DTH hammers (76–102 mm), or pneumatic top hammers (32–45 mm). This versatile design ensures efficient performance in a wide range of drilling applications.
Product Essential
Engine Power | 20 HP (15 kW) |
Engine Type | Electric (380 V AC) |
Hydraulic System Pressure | 200–250 bar |
Hydraulic Oil Flow Rate | 20–22 L/min |
Hydraulic Oil Capacity | 50–60 L |
Drilling Direction | Vertical, horizontal, angled |
Working Height (min.–max.) | 100–1,600 mm |
Feed Stroke | 1,600 mm |
Air Working Pressure | 7 bar |
Minimum Air Flow Rate | 5 m³/min |
Core Depth / Core Diameter | Up to 40 m / Ø38 mm |
CE Marking | CE |
Machinery Safety | 2006/42/EC |
Low Voltage Directive (LVD) | 2014/35/EU |
Air Inlet Connection | Camlock 1" |
Drilling Hammer Type | Rotation motor + DTH hammer / Top hammer / Coring motor |
DTH – Rotation Motor Type | Hydraulic |
DTH – Rotation Motor Power | 8–10 kW (10.7–13.4 HP) |
DTH – Max. Torque | 250–300 Nm |
DTH – Rotation Speed | 315–350 rpm |
DTH – Drilling Diameter | 76–102 mm |
DTH – Max. Drilling Depth | 25–30 m |
DTH – Max. Drilling Speed | Marble 40–50 cm/min · Granite 25–35 cm/min |
DTH – Motor–DTH Connection | Male RD 50 – conical female API 2 3/8" |
DTH – Hammer Type | Pneumatic |
DTH – Air Consumption | 1.8–2.1 m³/min |
DTH – Drill Rod Length | 1–1.5 m |
Top Hammer – Type | Pneumatic |
Top Hammer – Impact Frequency | 1,620–2,000 BPM (27–33.3 Hz) |
Top Hammer – Drilling Diameter | 32–45 mm |
Top Hammer – Max. Drilling Depth | 10 m |
Top Hammer – Max. Drilling Speed | Marble 50–70 cm/min · Granite 35–50 cm/min |
Top Hammer – Air Consumption | 3–4.8 m³/min |
Top Hammer – Shank Size | 22 × 108 mm |
Weight | 1,580 kg |
Length × Width × Height | 2,300 × 1,100 × 2,000 mm |
DTH Hammer Size | 3–3.5" |
