PLANETARY GEAR REDUCER

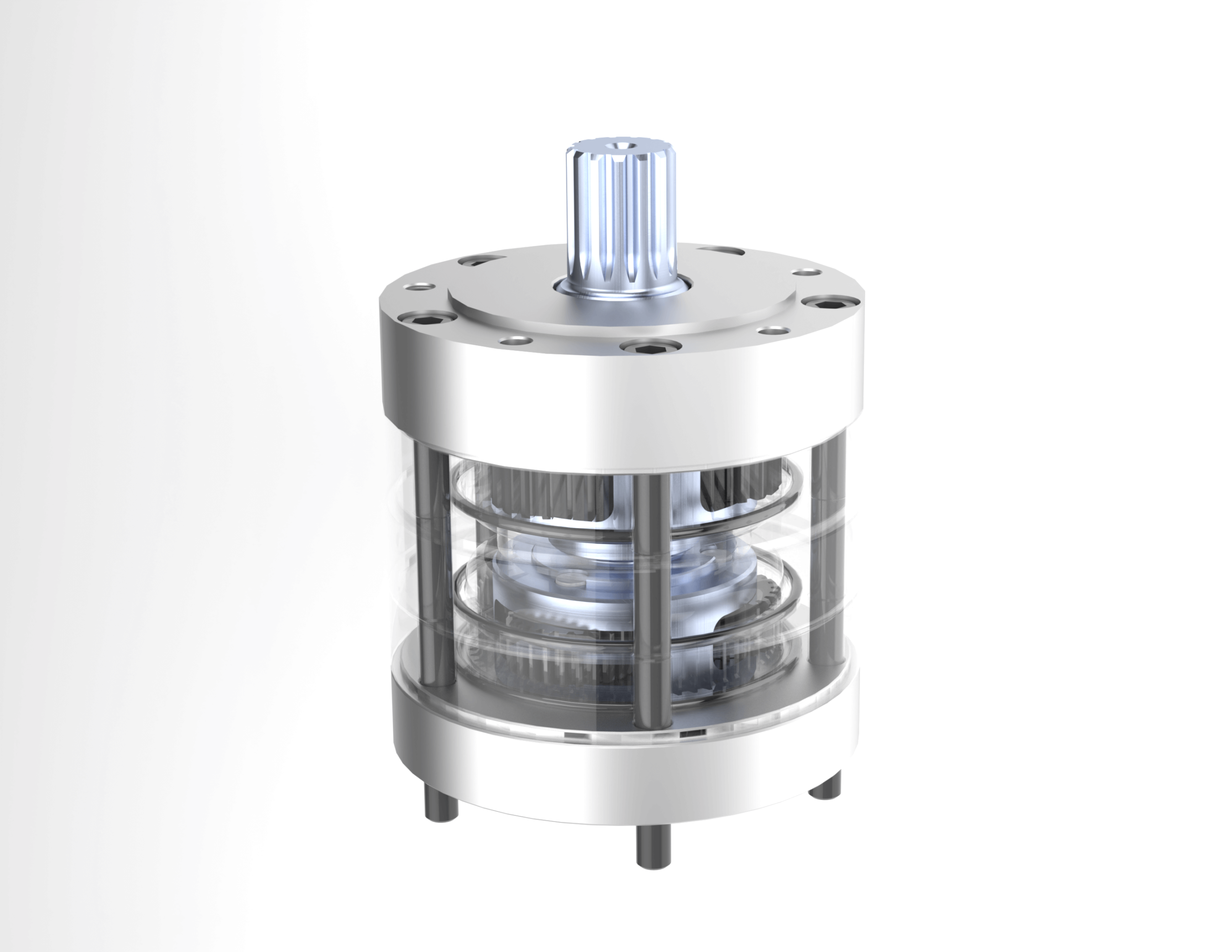

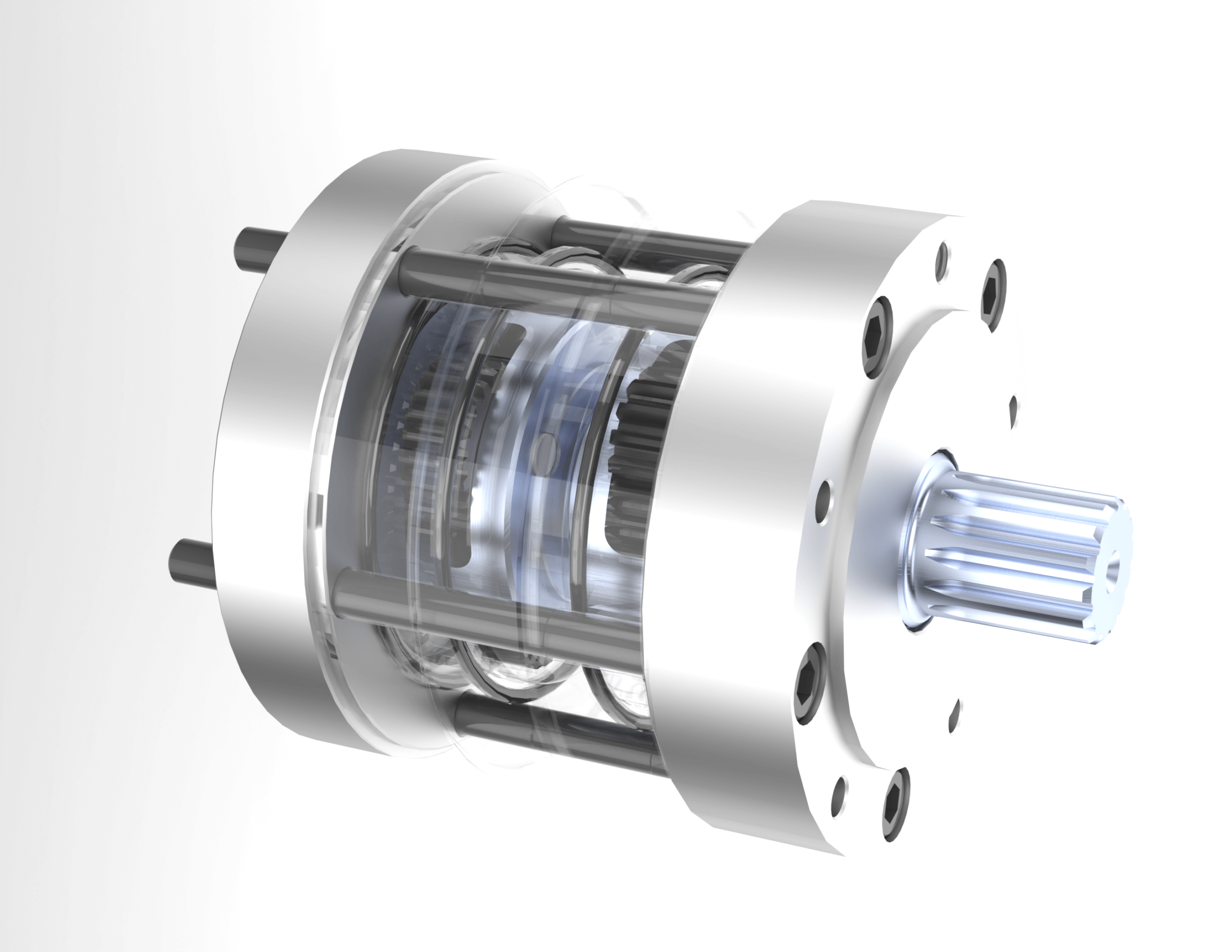

Set Makina’s planetary gear reducers sit in line with the motor (180°) and turn high input speed into controlled, high output torque. The load is shared across several planet gears, so the housing stays compact for the torque it delivers and vibration stays low under continuous duty. The range covers three models. The ZMR10 is a 2.5 kg single-stage unit with a 6:1 ratio. The RR10 is a two-stage 24:1 reducer for mid-range drives. The RR20 is a two-stage 36:1 unit rated to 650 Nm for heavy drives. All three are designed and manufactured in Ankara and pair directly with our pneumatic motors.

Technical Specifications

ZMR10 RR10 RR20
Ratio 6:1 24:1 36:1
Nominal power 5.5–7.5 kW (7.5–10 HP) 1.1–1.5 kW (1.5–2 HP) 3–4 kW (4–5.5 HP)
Thermal power 1.6 kW 2.5 kW 4.3 kW
Nominal torque 220 Nm 190 Nm 650 Nm
Stages 1 2 2
Shaft angle 180° (inline) 180° (inline) 180° (inline)
Max input speed 3000 rpm 3000 rpm 3000 rpm
Weight 2.5 kg 8.5 kg 22 kg

Thermal power is the continuous power the reducer can dissipate as heat without overheating. It is different from the nominal power rating.

Product Essential

Models
ZMR10, RR10, RR20
Ratio
6:1 – 36:1
Nominal Torque
190 – 650 Nm
Shaft Angle
180° (inline)
Max Input Speed
3000 rpm
