WORM GEAR REDUCER

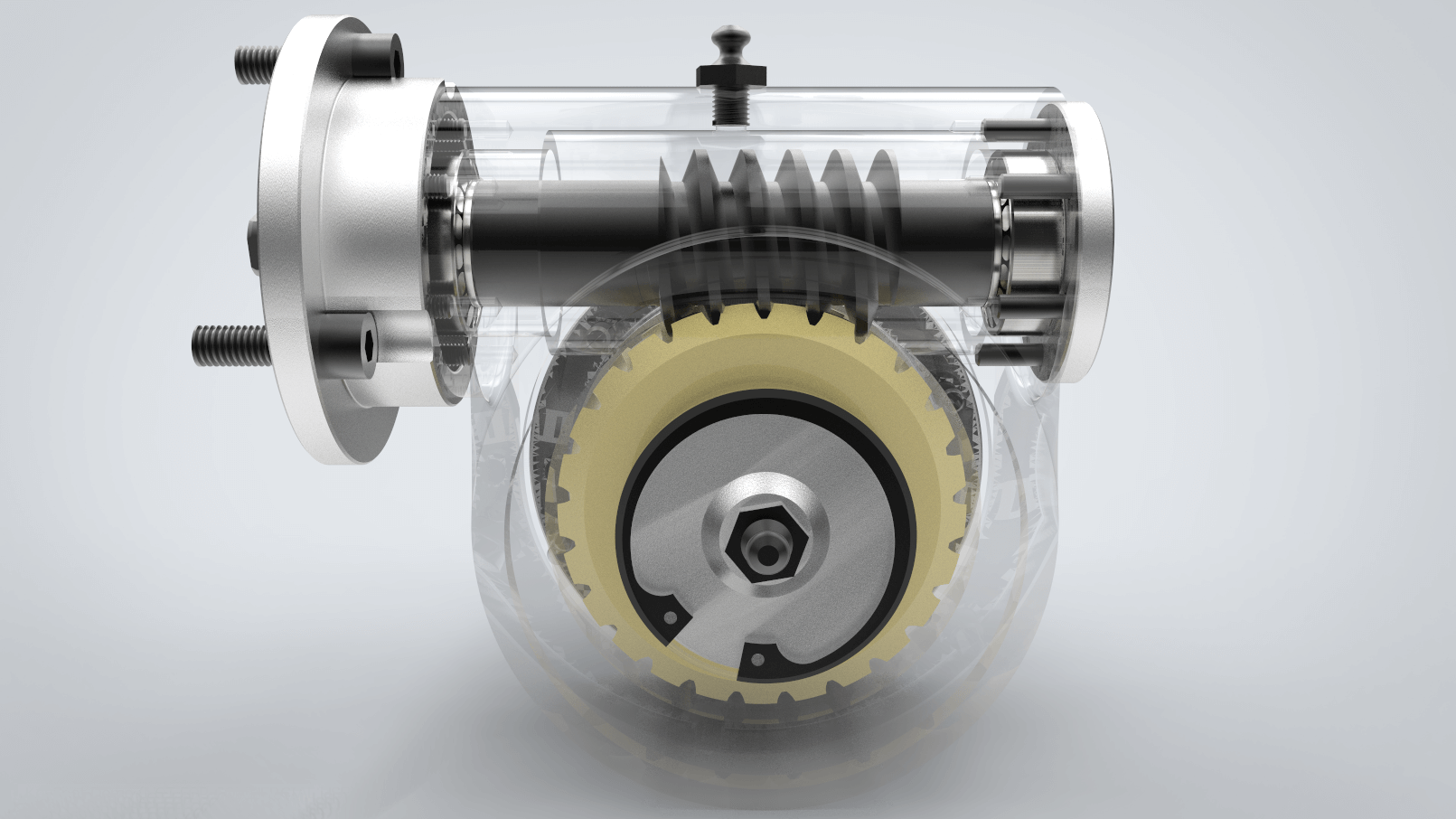

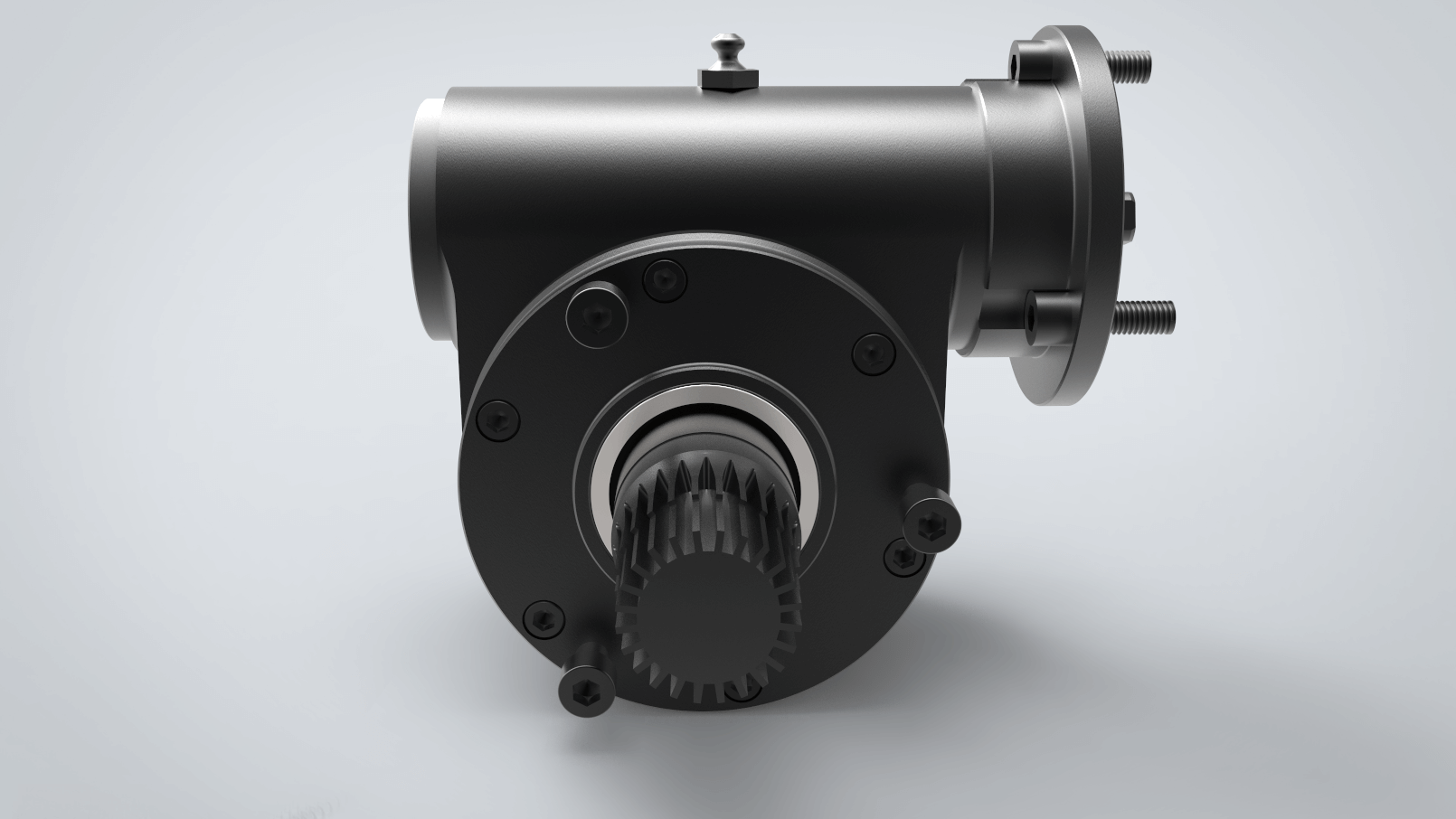

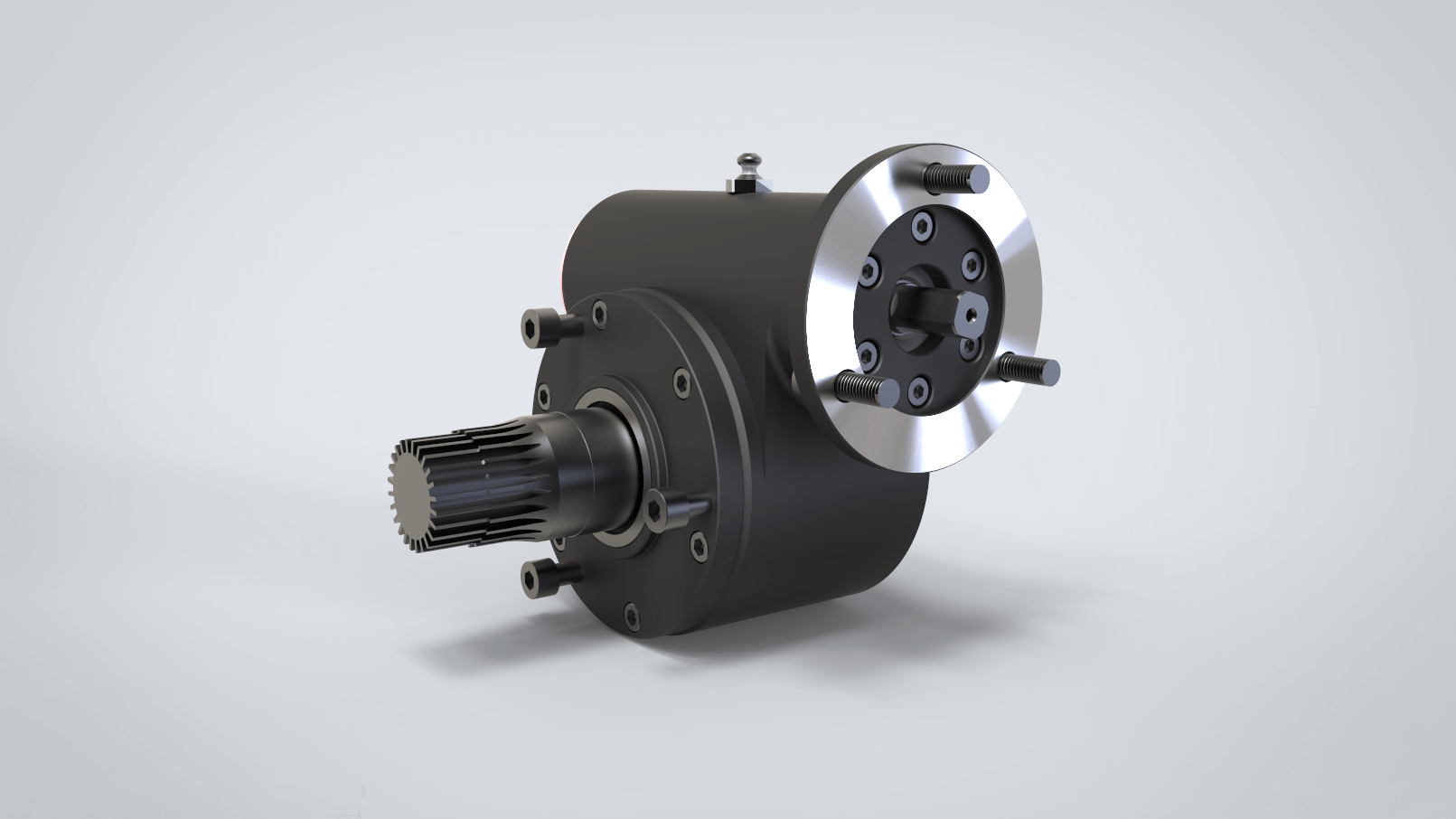

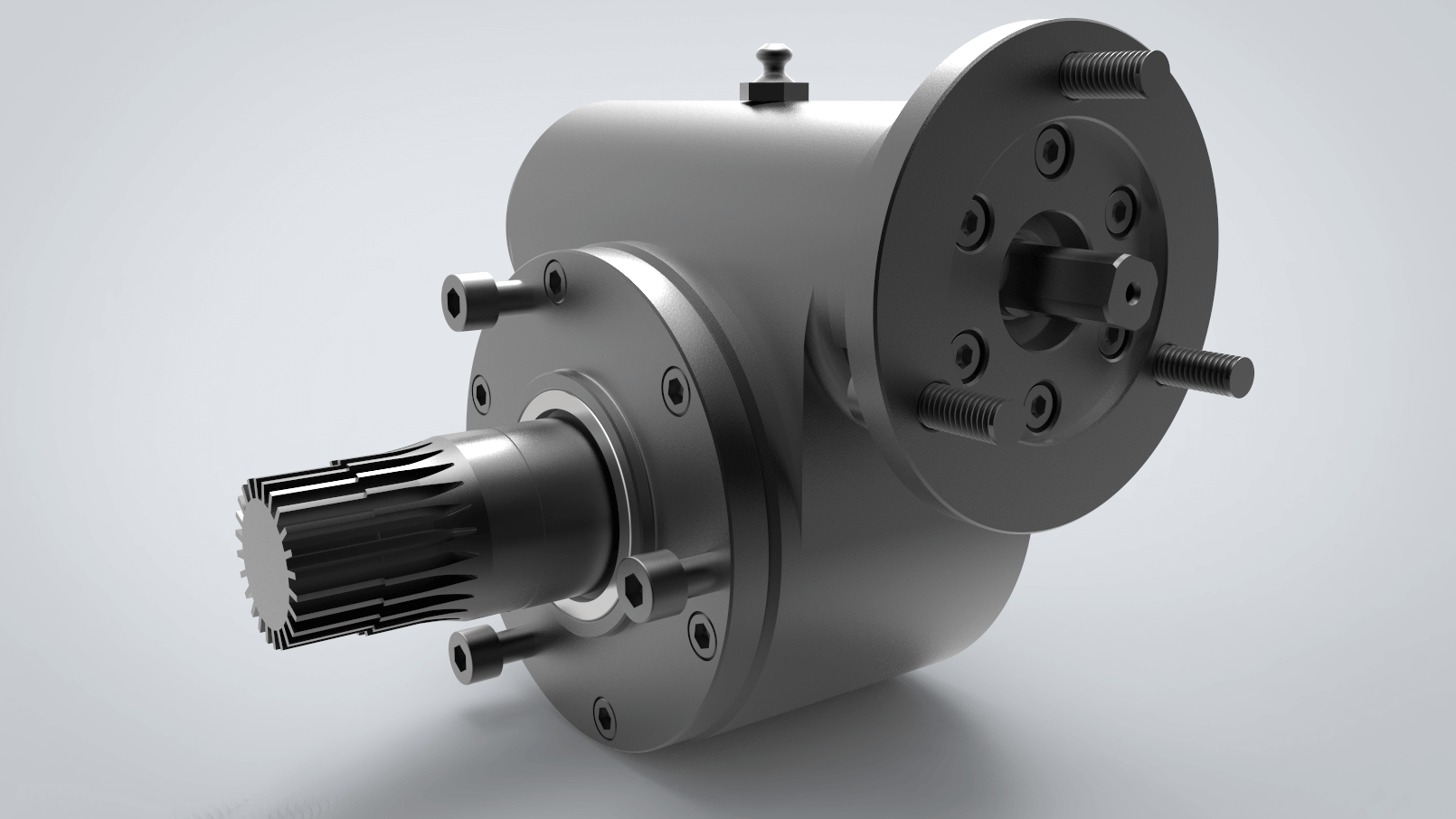

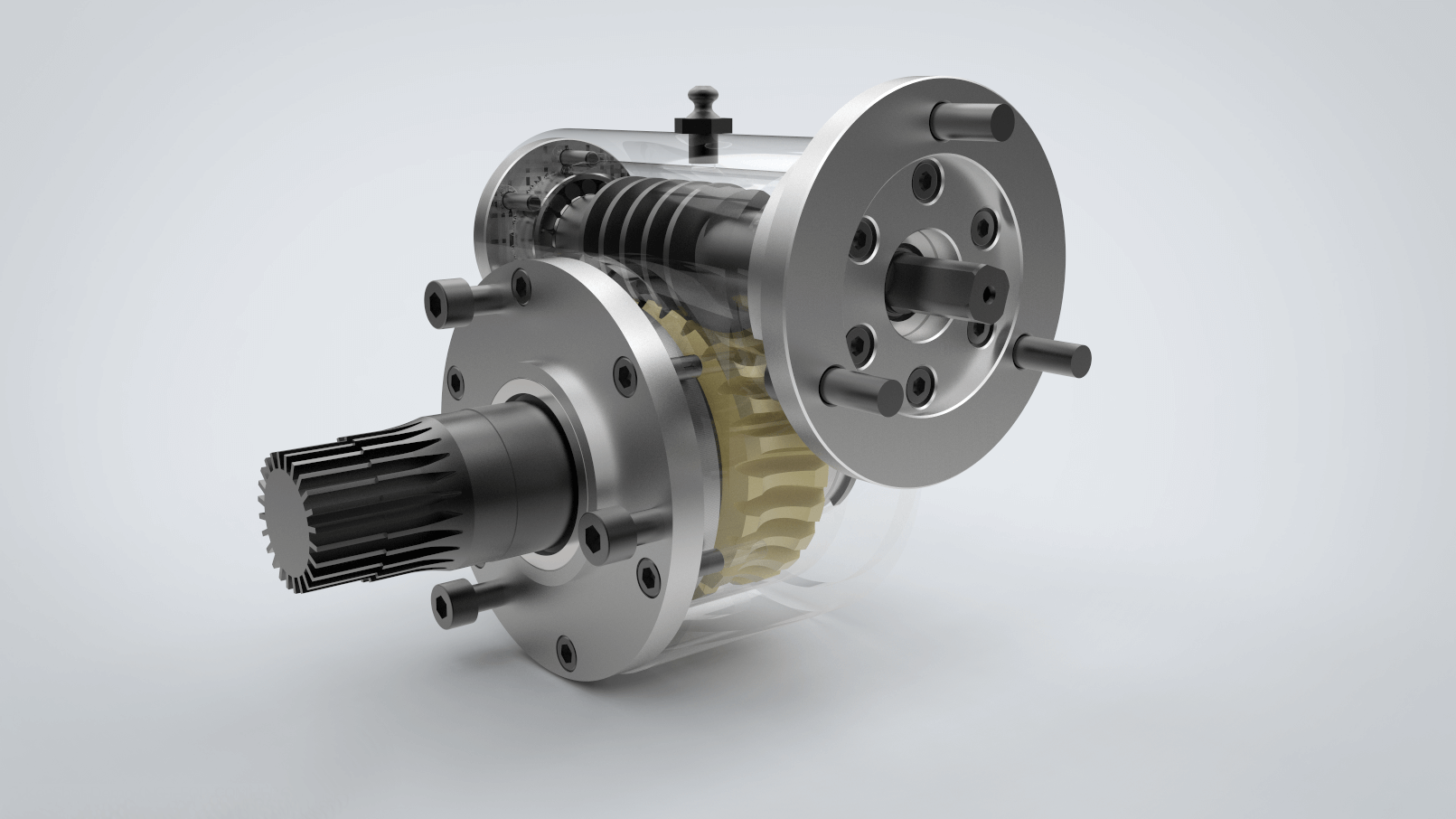

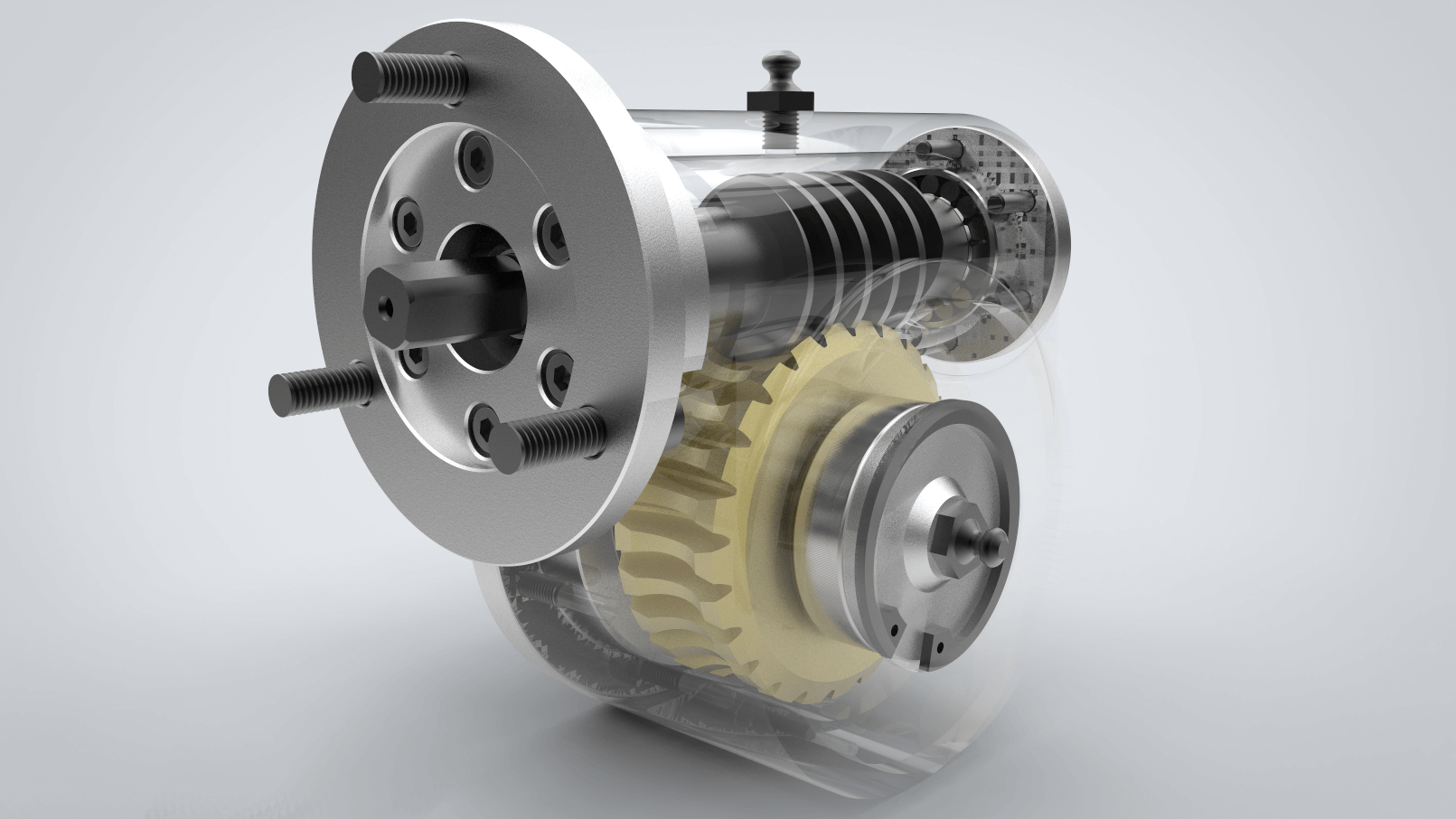

A worm gear reducer turns the drive through 90°, so the motor can sit alongside the machine instead of in line with it. That makes it a good fit for conveyors, winches and other equipment where space is tight. The worm-and-wheel mesh runs quietly and gives a high ratio in a single stage. Set Makina builds two models. The ZR10 has a 25:1 ratio and delivers up to 560 Nm. The ZR50 has a 40:1 ratio, giving lower output speed and 340 Nm. Both are single-stage, made in Ankara, and match our pneumatic motors.

Technical Specifications

ZR10 ZR50
Ratio 25:1 40:1
Nominal power 4–5.5 kW (5.5–7.5 HP) 1.5–2.2 kW (2–3 HP)
Thermal power 0.4 kW 0.3 kW
Nominal torque 560 Nm 340 Nm
Stages 1 1
Shaft angle 90° 90°
Max input speed 3000 rpm 3000 rpm
Weight 5.5 kg 6.5 kg

Thermal power is the continuous power the reducer can dissipate as heat without overheating. It is different from the nominal power rating.

Product Essential

Models
ZR10, ZR50
Ratio
25:1, 40:1
Nominal Torque
340 – 560 Nm
Shaft Angle
90°
Max Input Speed
3000 rpm
