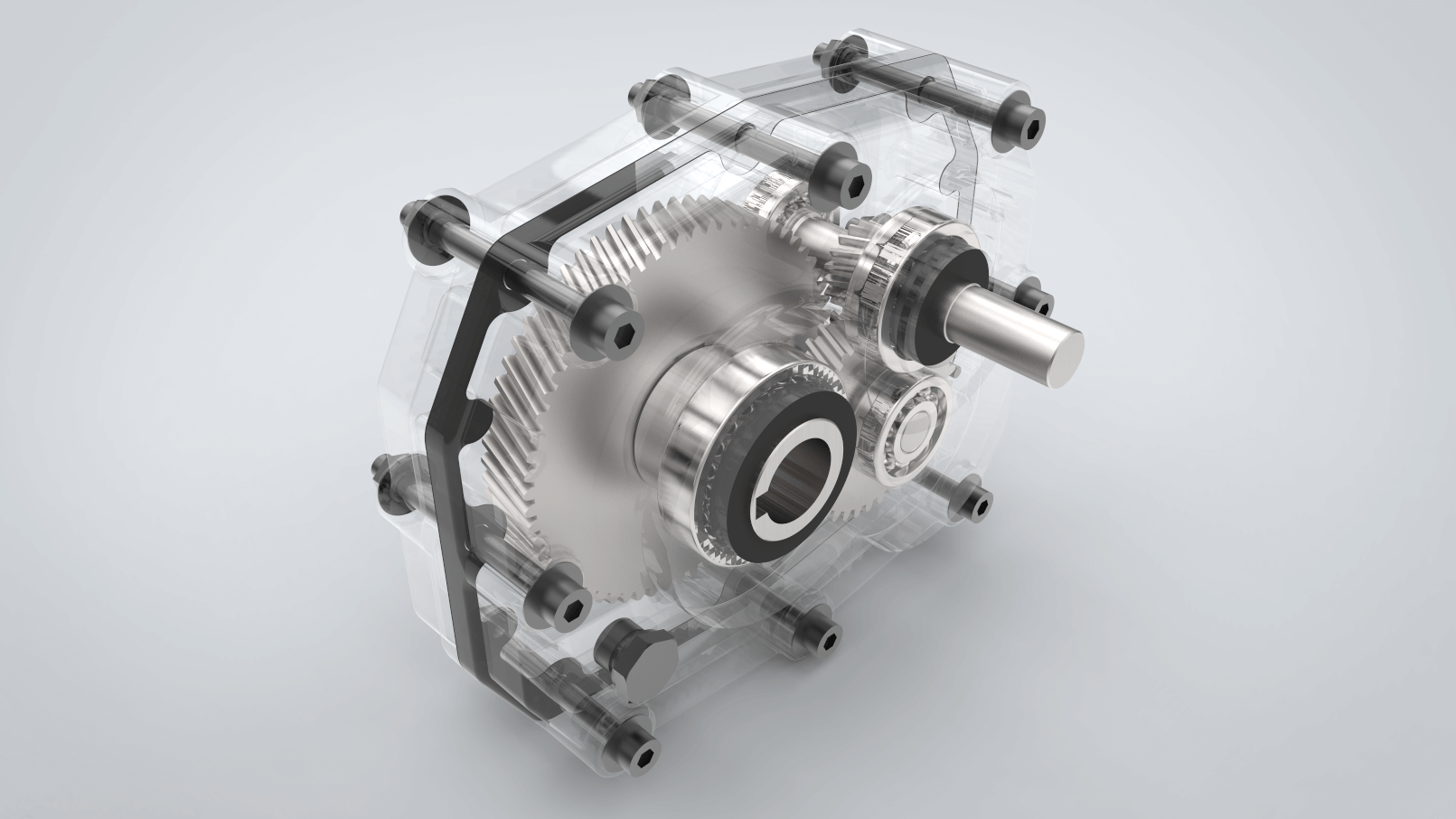

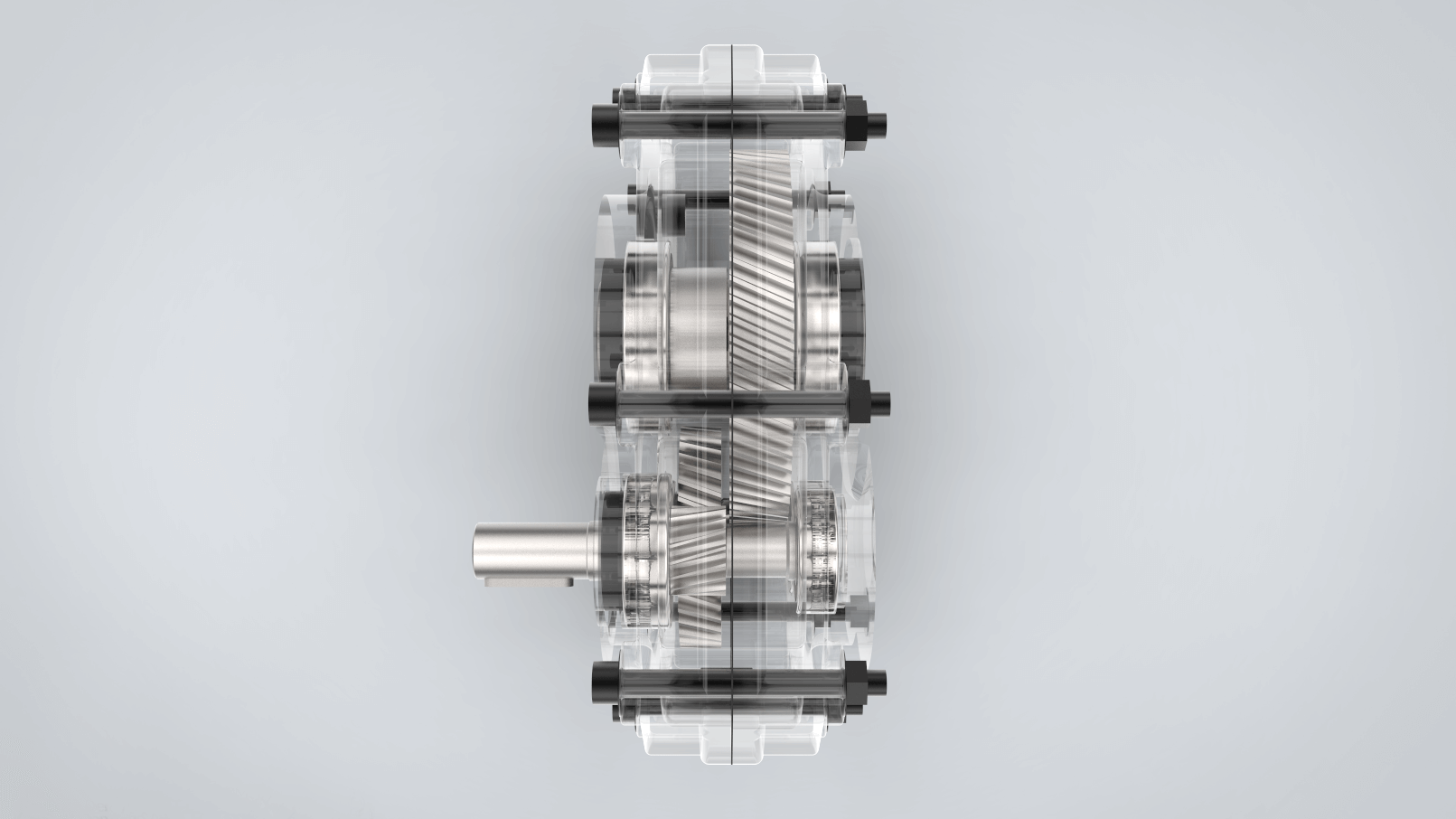

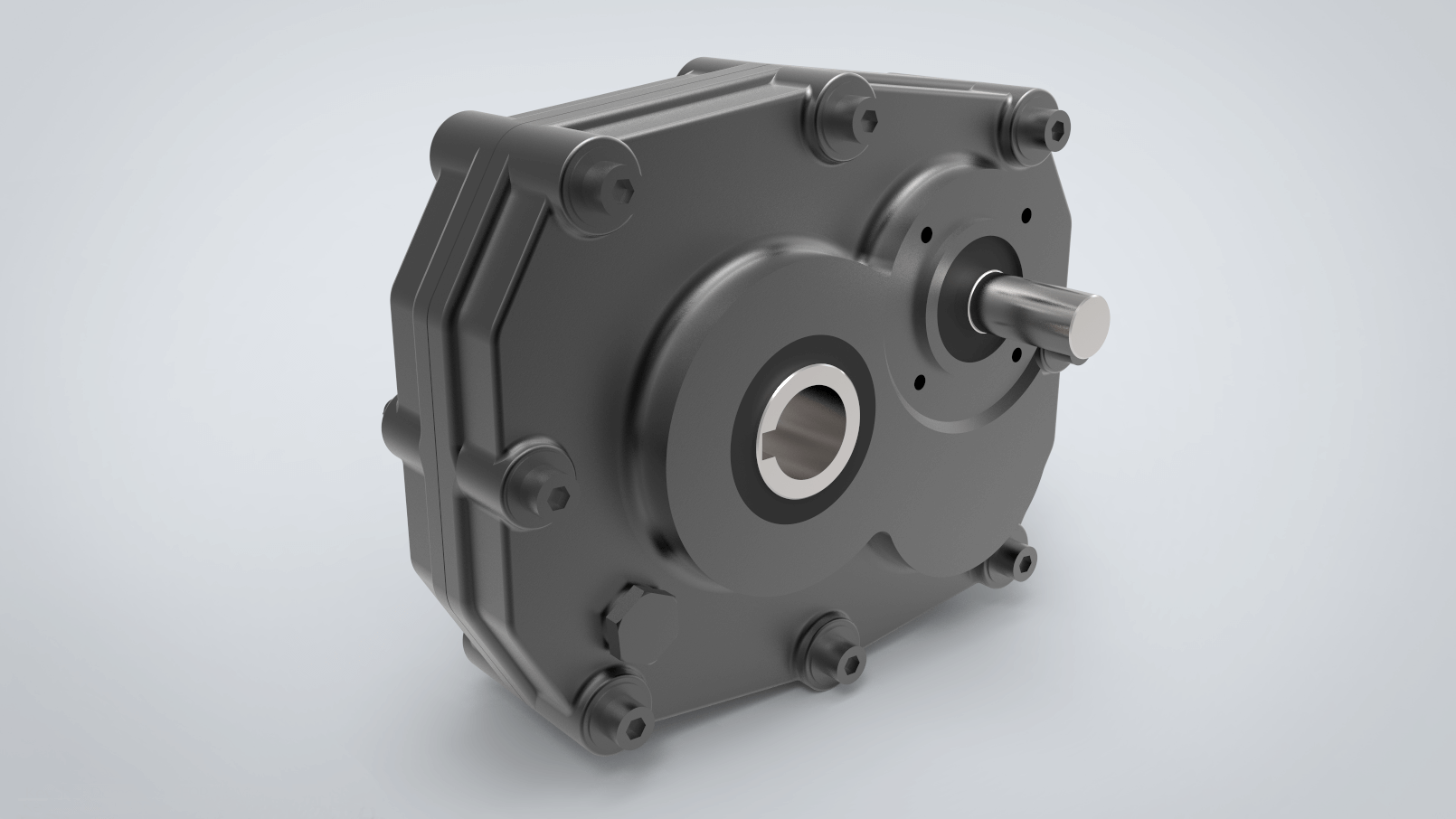

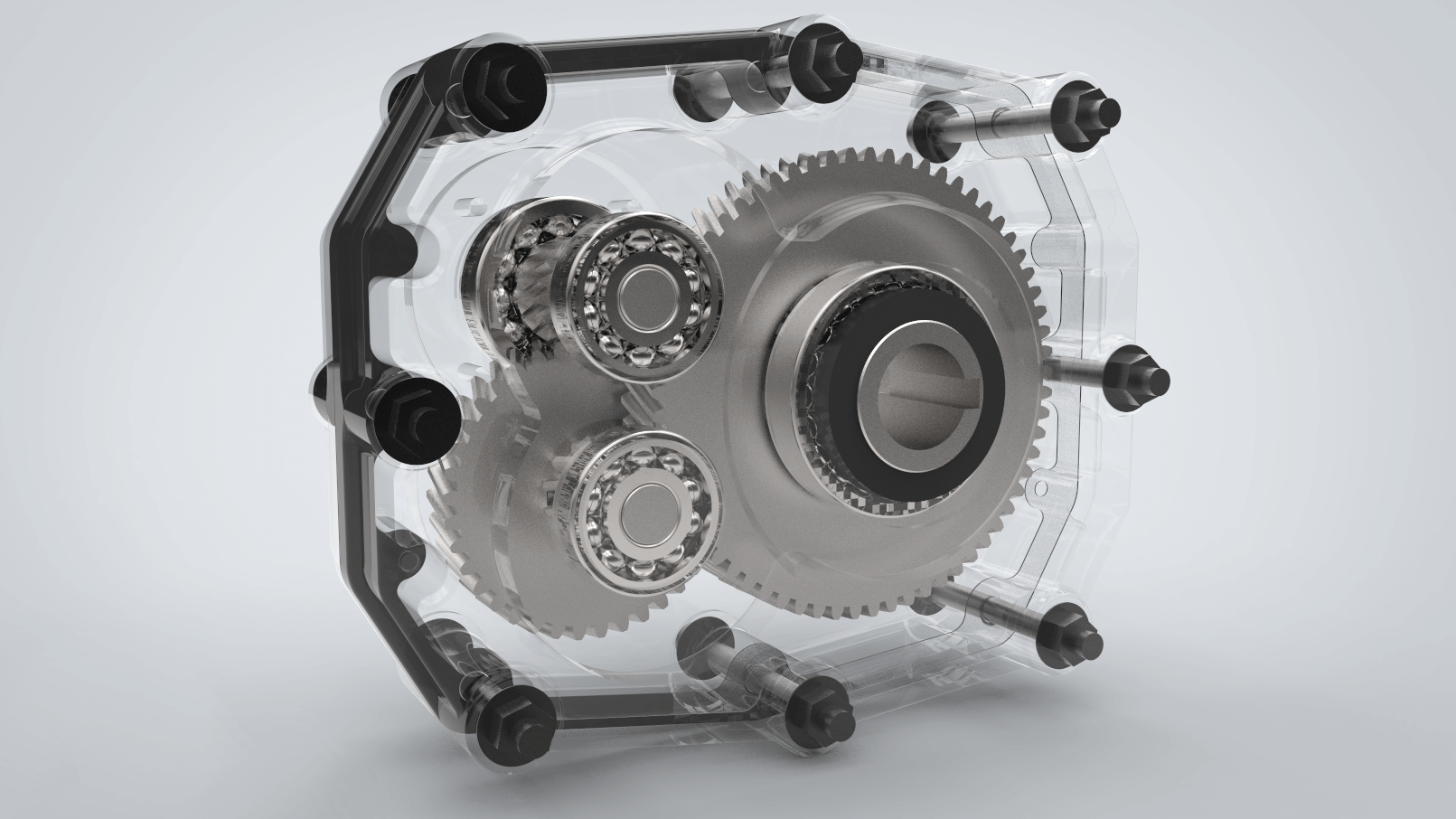

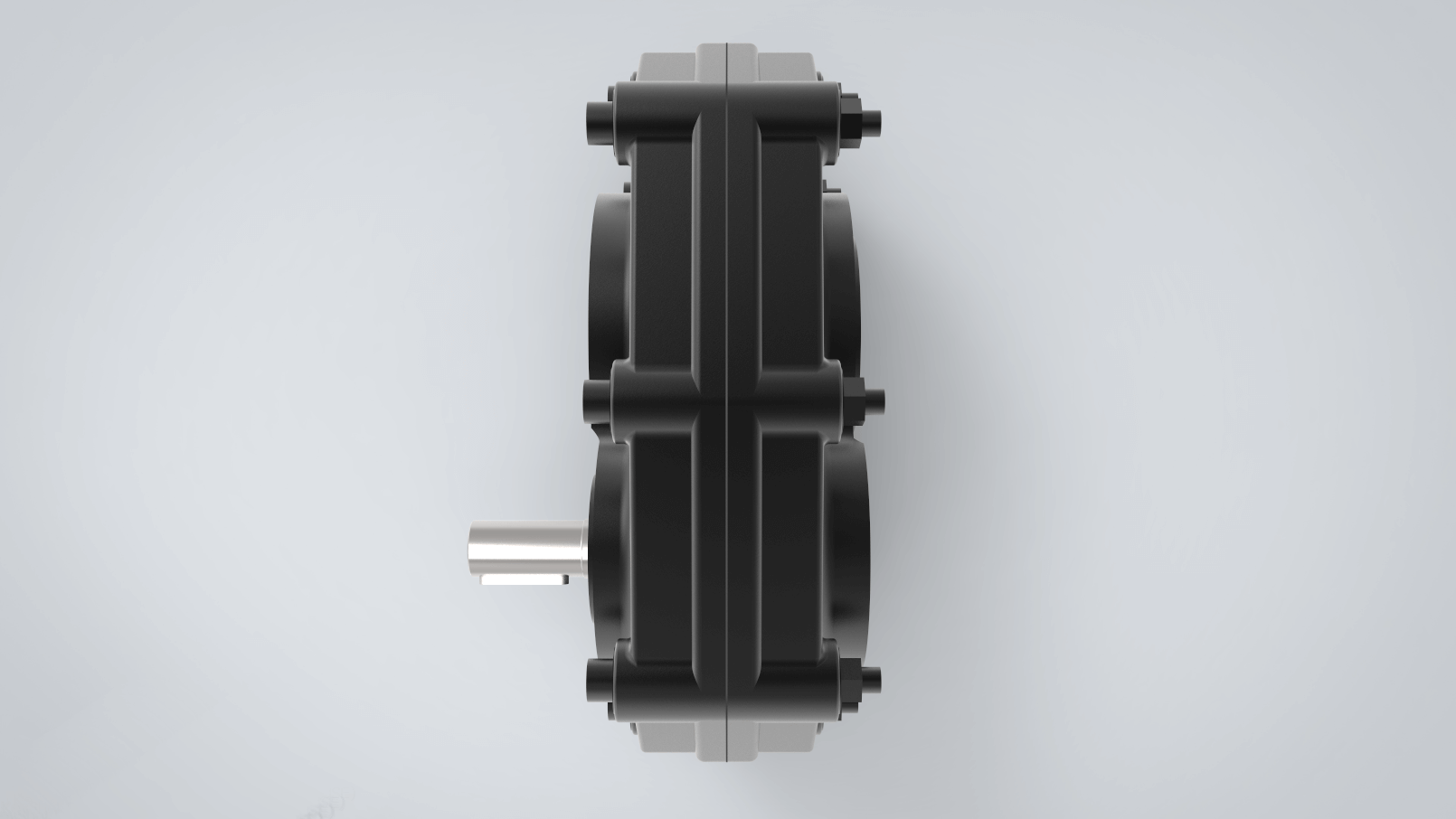

In a parallel shaft gear reducer, the output shaft runs parallel to the input but is offset from it. That keeps the drive in a flat, bolt-on housing. The ZR80 uses three gear stages to reach an 84:1 ratio, the highest in our range. It is the model to choose when the machine needs very low output speed with steady torque, such as feeds, slow conveyors or positioning drives. The ZR80 delivers 370 Nm at 0.75–1.1 kW input, weighs 8.5 kg, and is designed and manufactured in Ankara to pair with our pneumatic motors.
| ZR80 | |
|---|---|
| Ratio | 84:1 |
| Nominal power | 0.75–1.1 kW (1–1.5 HP) |
| Thermal power | 2.2 kW |
| Nominal torque | 370 Nm |
| Stages | 3 |
| Shaft angle | 180° (parallel, offset) |
| Max input speed | 3000 rpm |
| Weight | 8.5 kg |
Thermal power is the continuous power the reducer can dissipate as heat without overheating. It is different from the nominal power rating.
